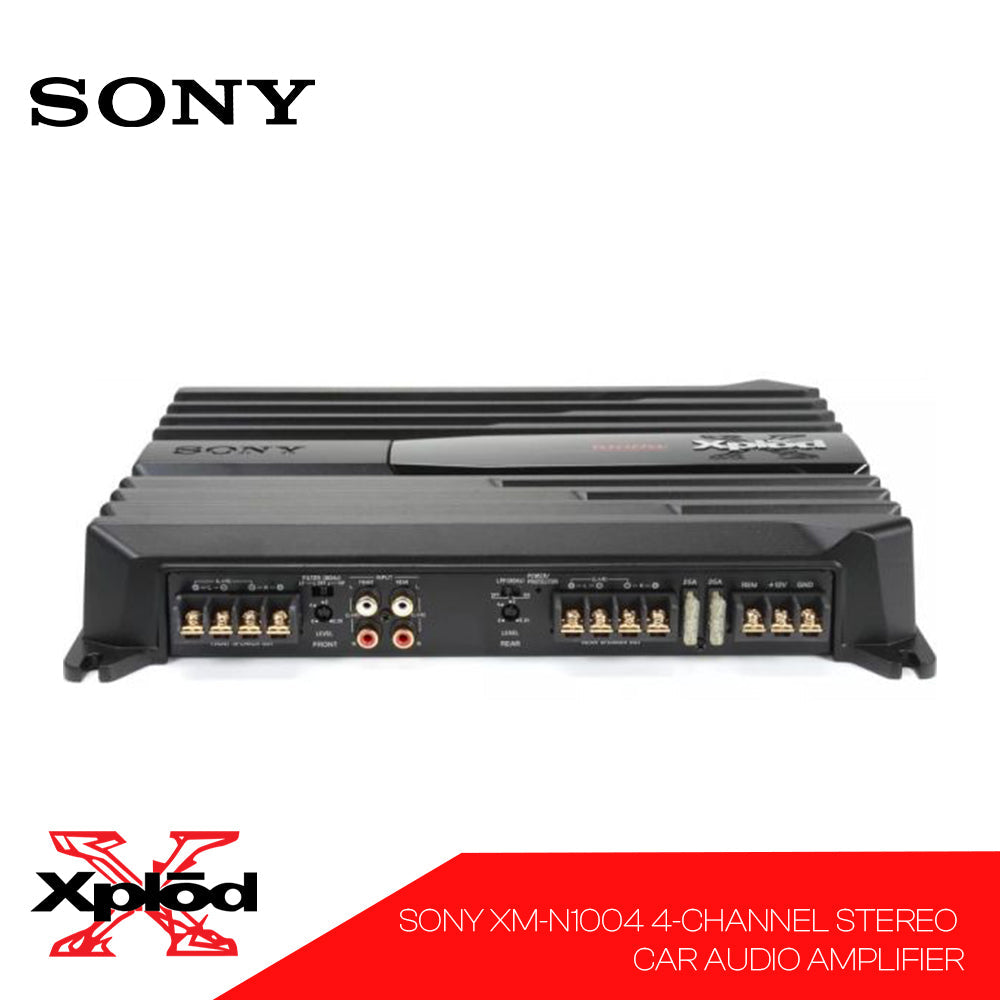

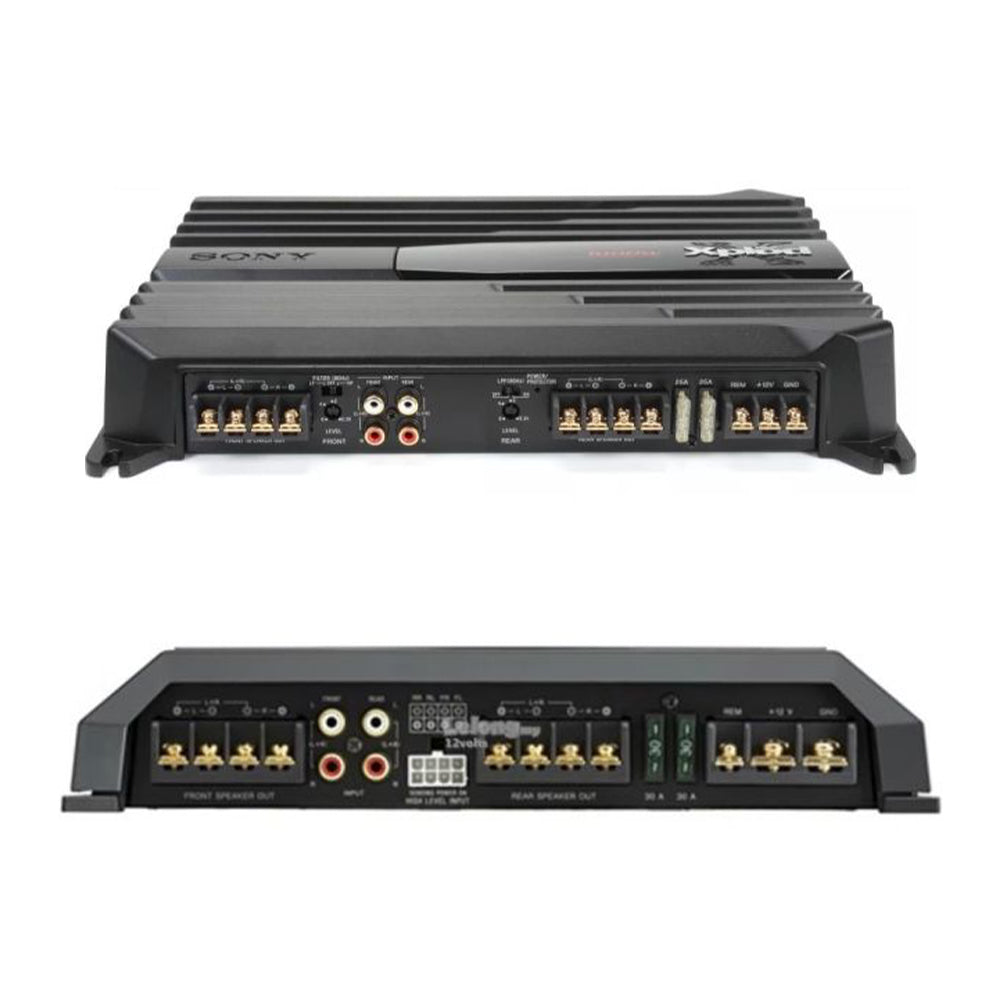

SONY 1000W XM-N1004 4-CHANNEL CAR AMPLIFIER.

Size & Weight:

• Weight: 2.7 kg

Amplifier:

• Channel Configuration: 4ch;3ch;2ch
• High Pass Filter: 80Hz
• High Pass Filter Slope: 12dB/oct
• Low Pass Filter: 80Hz
• Low Pass Filter Slope: 18dB/oct

Rated Output Power, RMS 20 - 20000 Hz:

• Max. Channel Configuration at 4 ohm (W) / THD (%): 70W x 4 / 1.0%
• Max. Channel Configuration at 2 ohm (W) / THD (%): 85W x 4 / 1.0%

Maximum Output Power (1 kHz):

• Max. Channel Power Configuration at 4 ohm: 4 x 170W
• Max. Channel Configuration at 4 ohm BTL (Bridge-tied Load): 2 x 500W
• Max. Channel Power Configuration at 2 ohms: 4 x 250W

General Features:

• Frequency Response: 5 - 50 kHz
• Tolerance: +0/-3dB
• Signal to Noise Ratio: 100dB
• Total Harmonic Distortion at 1 kHz (%): 0.05

Details:

• CTA Power Output: 70W x 4
• CTA SN Ratio: 93dBA
• MOSFET: YES
• Subsonic High Pass Filter: 12dB/oct
• Line In: Input Sensitivity: 0.3-6
• Gold Plated Connectors: YES
• Current drain (A) - rated output power at 4 ohms: 36
